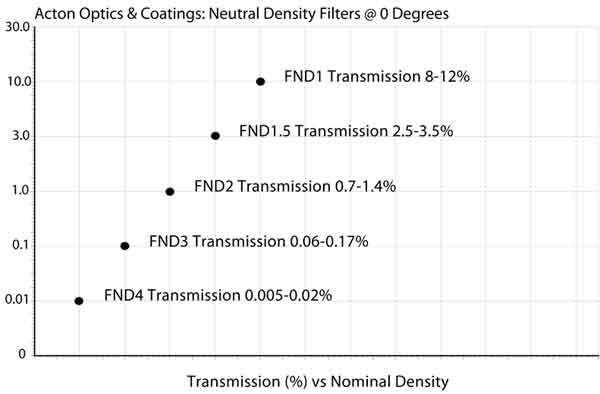

VUV / UV ND フィルター (Neutral Density Filter)
VUV Neutral Density Filters: 120 – 200 nm
| Optical Density |
Nominal Transmission |
Transmission Range |
0.5″ Part Numbers |
1.0″ Part Numbers |
2.0″ Part Numbers |
|---|---|---|---|---|---|
| 0.3 | 50% | 42-58% | FND0.3-.5D-V | FND0.3-1D-V | FND0.3-2D-V |
| 0.5 | 30% | 25-35% | FND0.5-.5D-V | FND0.5-1D-V | FND0.5-2D-V |
| 1.0 | 10% | 8-12% | FND1-.5D-V | FND1-1D-V | FND1-2D-V |
| 1.5 | 3.0% | 2.5-3.5% | FND1.5-.5D-V | FND1.5-1D-V | FND1.5-2D-V |
| 2.0 | 1.0% | 0.7-1.4% | FND2-.5D-V | FND2-1D-V | FND2-2D-V |
| 3.0 | 0.1% | 0.06-0.17% | FND3-.5D-V | FND3-1D-V | FND3-2D-V |
| 4.0 | 0.01% | 0.005-0.02% | FND4-.5D-V | FND4-1D-V | FND4-2D-V |
| 5.0 | 0.001% | 0.0007-0.0015% | FND5-.5D-V | FND5-1D-V | FND5-2D-V |
| 6.0 | 0.0001% | 0.00007-0.00014% | FND6-.5D-V | FND6-1D-V | FND6-2D-V |
NOTE:Substrate material for all VUV ND Filters is MgF2
UV Neutral Density Filters: 200 – 320 nm
| Optical Density |
Nominal Transmission |
Transmission Range |
0.5″ Part Numbers |
1.0″ Part Numbers |
2.0″ Part Numbers |
|---|---|---|---|---|---|
| 0.3 | 50% | 42-58% | FND0.3-.5D-M | FND0.3-1D-M | FND0.3-2D-M |
| 0.5 | 30% | 25-35% | FND0.5-.5D-M | FND0.5-1D-M | FND0.5-2D-M |
| 1.0 | 10% | 8-12% | FND1-.5D-M | FND1-1D-M | FND1-2D-M |
| 1.5 | 3.0% | 2.5-3.5% | FND1.5-.5D-M | FND1.5-1D-M | FND1.5-2D-M |
| 2.0 | 1.0% | 0.7-1.4% | FND2-.5D-M | FND2-1D-M | FND2-2D-M |
| 3.0 | 0.1% | 0.06-0.17% | FND3-.5D-M | FND3-1D-M | FND3-2D-M |
| 4.0 | 0.01% | 0.005-0.02% | FND4-.5D-M | FND4-1D-M | FND4-2D-M |
| 5.0 | 0.001% | 0.0007-0.0015% | FND5-.5D-M | FND5-1D-M | FND5-2D-M |
| 6.0 | 0.0001% | 0.00007-0.00014% | FND6-.5D-M | FND6-1D-M | FND6-2D-M |
NOTE: Substrate material for is fused silica for all UV ND Filters
